LSR-801 Series Radar Level Sensors
$ 98.59

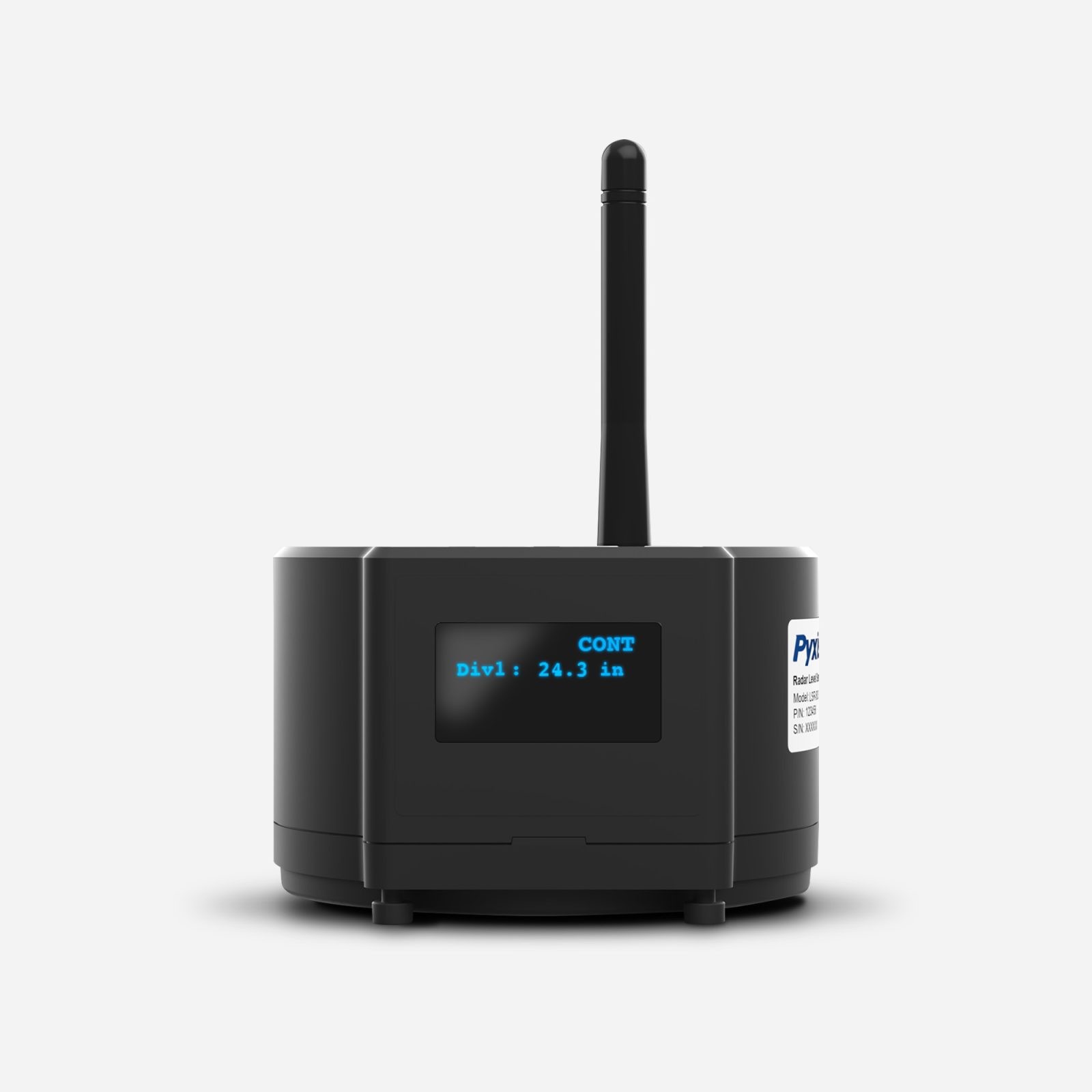

- The Pyxis LSR-801 Series sensors are W-band FMCW continuous frequency modulation radar level transmitters. They provide continuous level measurement up to 591 inches (49.2 ft. or 15 m) with 4-20 mA output as well as RS485, BlueTooth 5.0®. The LSR-801L is also equipped with LoRa (Long Range Radio) digital output for long-distance wireless level sensor data access. The LSR-801 Series can be wirelessly configured via the Pyxis uPyxis® app for Mobile or Desktop devices enabling rapid integration and deployment in the field. The sensors should be powered by a 24 VDC external power supply and are ideal for use with commonly used OEM controllers, PLC or DCS systems. This non-contact liquid level sensor platform is well suited for corrosive liquids and can be used for industrial, municipal and process liquid storage as well as chemical feed applications. Features Radar Liquid Level Measurement up to 15 Meters ( 2mm) Embedded Transmitters 4-20mA and RS-485 Outputs Bluetooth® Version 5.0 for Rapid-Wireless uPyxis Configuration LoRa (Long Range Radio) Implemented LSR-801L 24VDC Powered with Smart Switch Capability PVDF Transducer / 6P Polycarbonate Enclosure 10-ft Waterproof 7-Pin Quick Adapter/Flying Lead Cable Extension Cables Availableix.Automatic Temperature / Electromagnetic Noise Compensation
