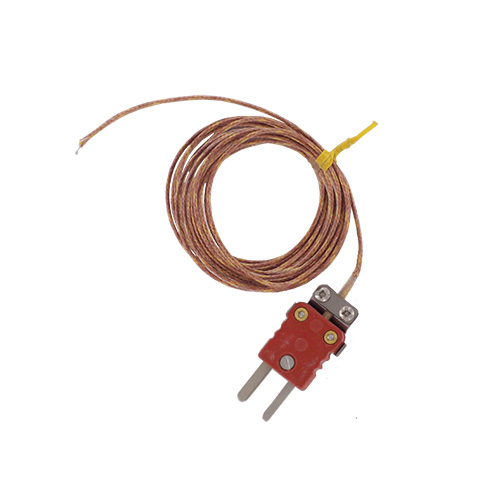

Thermocouple Single 0.010″ Type K High-Temp Mini Connector – (15′ length) Glass Insulated
$ 99.00
- Description Single 30-gage [0.254 mm/0.010”] 4572 mm/15 ft length Type K wire thermocouple for applications that require medium to large test points and are not as thermally sensitive. The wire insulation and jacket are braided with natural colored glass and have a maximum temperature rating of 482° C/900° F. This sensor is designed for the ECD four and three-channel thermal profilers (V-M.O.L.E.™ 2 & V-M.O.L.E.™) that that requires mini-connectors. High Temperature (Hi-Temp) connector rated to 800°F (425°C) continuous and 1000°F (540°C) intermittent. Type K: Special Limits of error ±1.1 or ±0.004*T per ASTM E230/E230M-12, IEC 60584:2013 and ISA–MC96.1–1982. Related
Related products
-
Thermocouple Single 0.010″ Type K High-Temp Mini Connector – (3′ length) PFA Insulated
-
Thermocouple Single 0.010″ Type K High-Temp Mini Connector – (3′ length) Glass Insulated
-

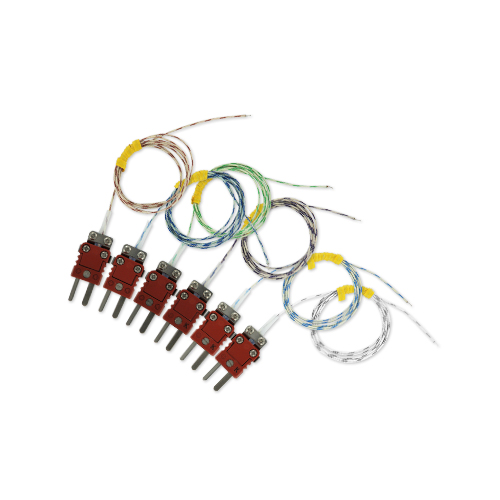

Thermocouple Pack of Six 0.010″ Type K High-Temp Mini Connector – Multi Color (3′ length) Glass Insulated
-
