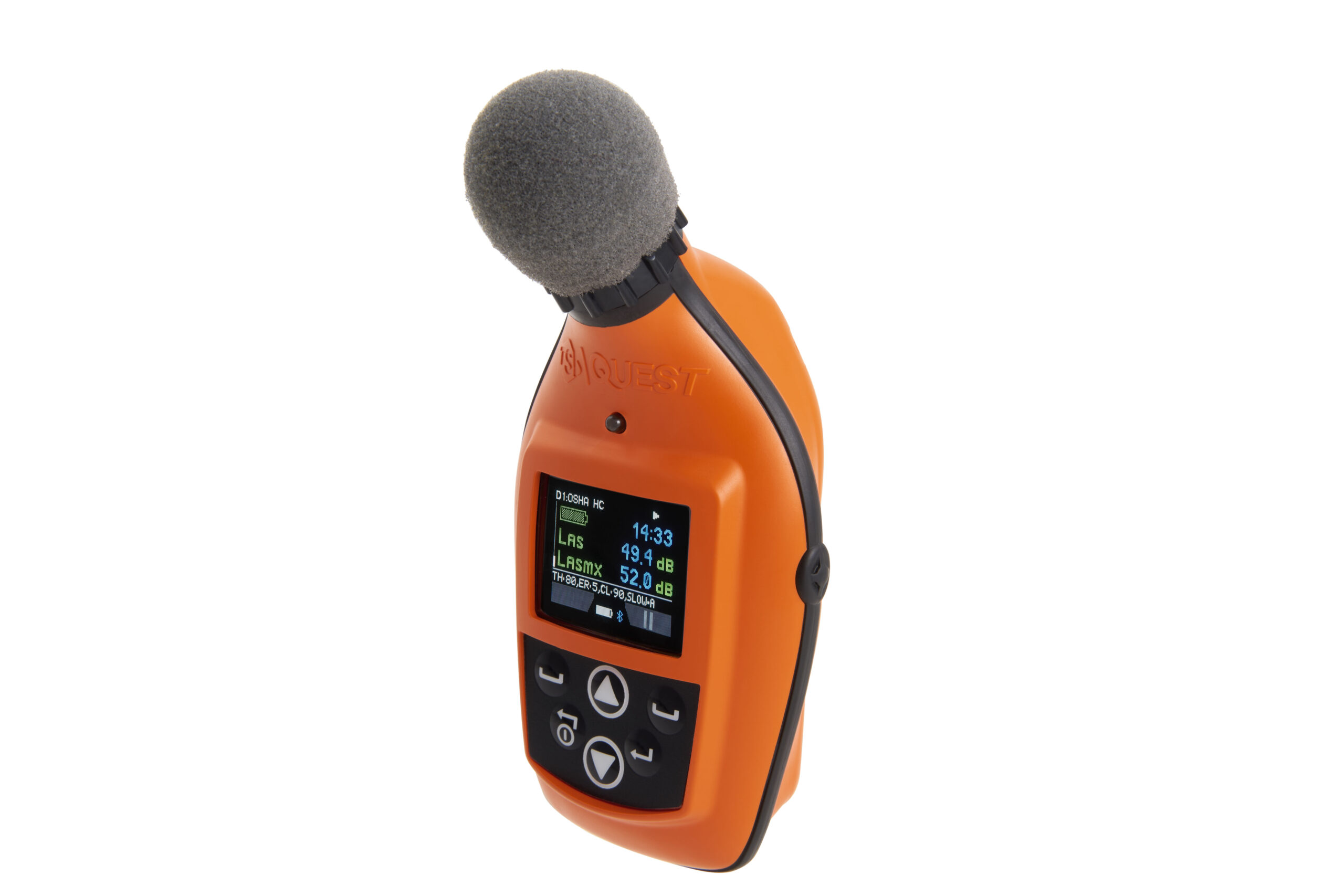

Edge 8 Intrinsically Safe Single Dosimeter with No Accessories
$ 97.50
- Description Edge 8 Intrinsically Safe Single Dosimeter with No Accessories. Includes: (1) Single-unit Dosimeter with MIC-EG8 microphone and windscreen attached; (1) 056-990 Calibration Adapter; 1-Unit Carry Case with 2-year warranty. TSI Quest EDGE 8 Description Features Application Specifications Documentation Accessories Calibration The Quest™ Edge 8 Personal Noise Dosimeter allows users to monitor personal noise exposure levels in real-time, within Bluetooth range with a mobile application. The ability to monitor from a safe distance allows workers to continue tasks without interruption in a variety of workplace environments. Intrinsically Safe Certification - to enable monitoring to be safely performed in potentially hazardous environments where devices must be certified for use. Powerful in Capabilities – easy-to-use and comes standard with the full-feature set, so no upgrade charges BLE5 Bluetooth® technology syncs to the Edge dB mobile app for data viewing and management at a safe distance. Non Bluetooth models are also available Voice Notes capture a verbal note about location, description, or noise event, which will display in the time-stamped data set for reference in later analysis Audio Recording function will automatically record audio of a noise event above a configurable dB level and be reviewable in your time-stamped data set, allowing for improved diagnostics and time savings in analysis 1/1 Octave Band data capture and analysis enabled Engineering Control validation and identification of potential changes needed Pause Study functionality allows for elimination of noise data during breaks, location/shift changes, or off-site travel to give a more accurate representation of working environments Ceiling threshold monitoring counts the number of occurrences above a ceiling dB level that you determine, giving you better information when a worker may be at increased risk and need hearing protection device changes Four independent, configurable virtual dosimeters that can monitor against up to 4 different standards simultaneously LED dose indicator flashes to easily identify who has reached their daily maximum noise dose exposure User-Configurable settings allow you control of feature set-up and analysis according to your specific needs Built Durable – specifically designed for day-after-day use and tough environments Sturdy ½” MEMS microphone (Type 2/Class 2) designed to hold up to rigorous use Hi Visibility Color display for easy reading in different light conditions Robust windscreen designed for daily use with easy removal for calibration Shock resistant rubber overlay for better protection and durability Compact unit mounts easily and securely to the shoulder Intuitive Detection Management Software (DMS) - configure dosimeter as well as intuitively interpret measurements and generate reports for export and sharing of results Mining Oil and Gas and Downstream Refineries Commercial Construction Road Construction Military Industrial Manufacturing Battery life - 30 hours nominal without display activated Microphone - 1/2 inch MEMS field replaceable microphone Measuring range - 70 dB to 140 dB Dosimeter - Four independent dosimeters Convenient presets – Preprogrammed to OSHA and ACGIH standards Frequency weighting – A, C, Z Independent exchange rates - 3 dB, 4 dB or 5 dB for each dosimeter EDGE 8 Datasheet EDGE 8 User Manual EDGE 5 Battery Pack $187.00 Add to cart 10 Pack EDGE Storage Case – Holds (10) EDGE Dosimeters, (2) 5 Bay Docking Stations & (1) Calibrator $290.00 Add to cart 5 Bay EDGE Dock – For the EDGE Dosimeters. Includes (1) 053-575 USB Cable and (1) 017-646 Power Supply $1,305.00 Add to cart 5 Pack EDGE Storage Case – Holds (5) EDGE Dosimeters, (1) 5 Bay DockingStation & (1) Calibrator $150.00 Add to cart AC-300 AcoustiCal Calibrator $630.00 Add to cart Adapter – For EDGE Series Class 2 microphone – For QC10/AC-300 calibrator $60.00 Add to cart Adapter – For NoisePro Class 2 microphone – For QC10/AC-300 calibrator $60.00 Add to cart Adapter-for 1/2 inch diameter microphone-For QC10/AC-300 calibrator $60.00 Add to cart Badge Clip/NoisePro Series Only – Package of 5 $50.00 Add to cart BK4936 Microphone – 1/2 inch free-field electret (prepolarized) $1,285.00 Add to cart CD containing Detection Management Software for use with QUEST datalogging products $240.00 Add to cart Clothing Clips – Package of 5 – For NoisePro Series Dosimeters $25.00 Add to cart Edge Clip Assembly & Screw – For the EDGE Dosimeters, Includes (1) 053-761 Clip Assembly and (1) 053-621 Screw $30.00 Add to cart Field Replaceable Class 1 Shoulder-Mount Microphone Preamp and Cable for NoisePro DLX-1 $375.00 Add to cart Field Replaceable Class 2 Boom Microphone for NoisePro/DL/DLX $420.00 Add to cart Field Replaceable Class 2 Pendant Microphone for NoisePro/DL/DLX Call for Price Call for Price IR to RS-232 Computer Interface Cable to connect NoisePro IR port to computer RS-232 9-pin DIN port $260.00 Add to cart IR to USB Computer Interface Cable to connect NoisePro IR port to computer USB port $185.00 Add to cart NoisePro Series Replacement Battery Cover $125.00 Add to cart NoisePro Series Replacement Security Cover $50.00 Add to cart Replacement 1/4 inch Dosimeter Microphone – for EDGE Dosimeters $300.00 Add to cart RS-232 Serial to USB Adapter – This adapter is used to connect serial cables to the computer USB port $140.00 Add to cart Single Bay EDGE Dock – For the EDGE Dosimeters. Includes (1) 053-575 USB Cable and (1) 017-646 Power Supply $585.00 Add to cart Single EDGE Storage Case – Holds (1) EDGE Dosimeter, (1) Single Bay Docking Station & (1) Calibrator $100.00 Add to cart Single-Unit Storage Case – Holds (1) NoisePro Dosimeter and (1) Calibrator $125.00 Add to cart TP-1 Tripod $150.00 Add to cart Universal Power Supply 12V/1.5A 2.1MM – For the EDGE Dosimeters $130.00 Add to cart USB containing Detection Management Software for use with QUEST data- logging products $240.00 Add to cart USB Type A to USB Mini Cable for SoundPro SE/DL, SE400 Series, Edge Noise Dosimeters, NI-100, and EVM series $20.00 Add to cart Water Resistant Multi-Unit Storage Case – Holds (5) Dosimeters & (1) Calibrator (NoisePro) $405.00 Add to cart Windscreen (for EDGE) – Package of 5 $145.00 Add to cart Windscreen (for NoisePro Class 1 microphone) – Package of 3 $85.00 Add to cart Windscreen (for NoisePro Class 2 microphone) – Package of 5 $80.00 Add to cart TSI Quest EDGE 4 Accredited Calibration Call for Price Call for Price TSI Quest EDGE 4 Accredited Repair & Calibration Call for Price Call for Price TSI Quest EDGE 4 Standard Calibration $295.00 Add to cart TSI Quest EDGE 4 Standard Repair & Calibration Call for Price Call for Price TSI Quest EDGE 4 Accredited Calibration Call for Price Call for Price TSI Quest EDGE 4 Accredited Repair & Calibration Call for Price Call for Price TSI Quest EDGE 4 Standard Calibration $295.00 Add to cart TSI Quest EDGE 4 Standard Repair and Calibration Call for Price Call for Price
