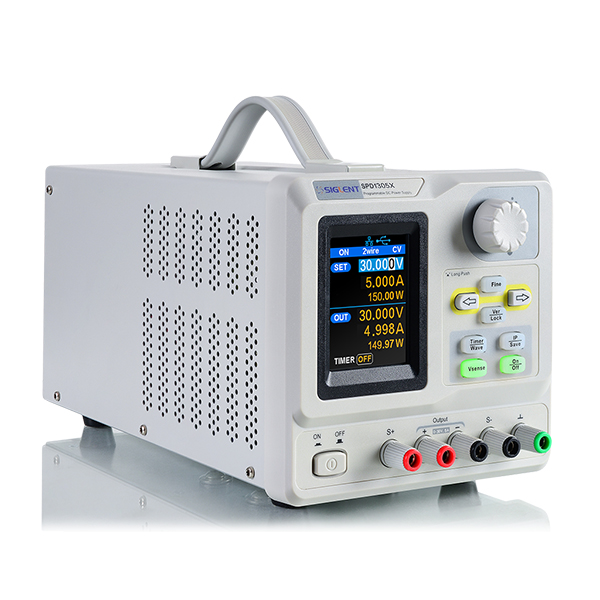

Power supply Programmable LCD 0-30V / 0-5A Siglent
$ 99.47
- SPD1305X 150W 30V 5Amp Single output powersupply Model SPD1305X DC Output (0 °C to 40 °C ) Output Voltage: 0 to 30 V Output Current: 0 to 5 A Display 2.8 inch true color TFT-LCD 5 digit voltage/4 digit current Resolution 1mV/1mA Program Accuracy (25 ± 5 °C ) Voltage: ±(0.03% of reading 10 mV) Current: ±(0. 3% of reading 10 mA) Program Accuracy (25 ± 5 °C ) Voltage: ±(0.03% of reading 10 mV) Current: ±(0. 3% of reading 10 mA) Temperature Coefficient per °C (Output Percentage Offset Voltage: ±(0.01% of reading 3 mV) Current: ±(0.01% of reading 3 mA) Ripple & Noise ≤ 2 mArms Constant Voltage Mode Load Regulation ≤ 0.01% 2 mV Ripple & Noise ≤ 350 uVrms/3 mVpp (20 Hz to 20 MHz) Recovery Time < 50 μs (50% load change, minimum load 0.5 A) Constant Current Mode Line Regulation ≤ 0.2% 3 mA Load Regulation ≤ 0.2% 3 mA Locking Key Yes Memory Save/Recall 5 Sets Max Output Power 150W Power Source AC 100 /120/220/230 V ± 10% 50/60Hz All the specifications are guaranteed when the instrument has been working for more than 30 minutes under the specified operating temperature. Unless otherwis noted, the specifications are applicable to all the channels of the specified model. Accessories included : 1 x USB Cable 1 x Output Test Cord 1 x Quick Start 1 x Product Certificate 1 x Calibration Certificate 1 x Power Cord 220V EU
